Bevel Gear Cutting

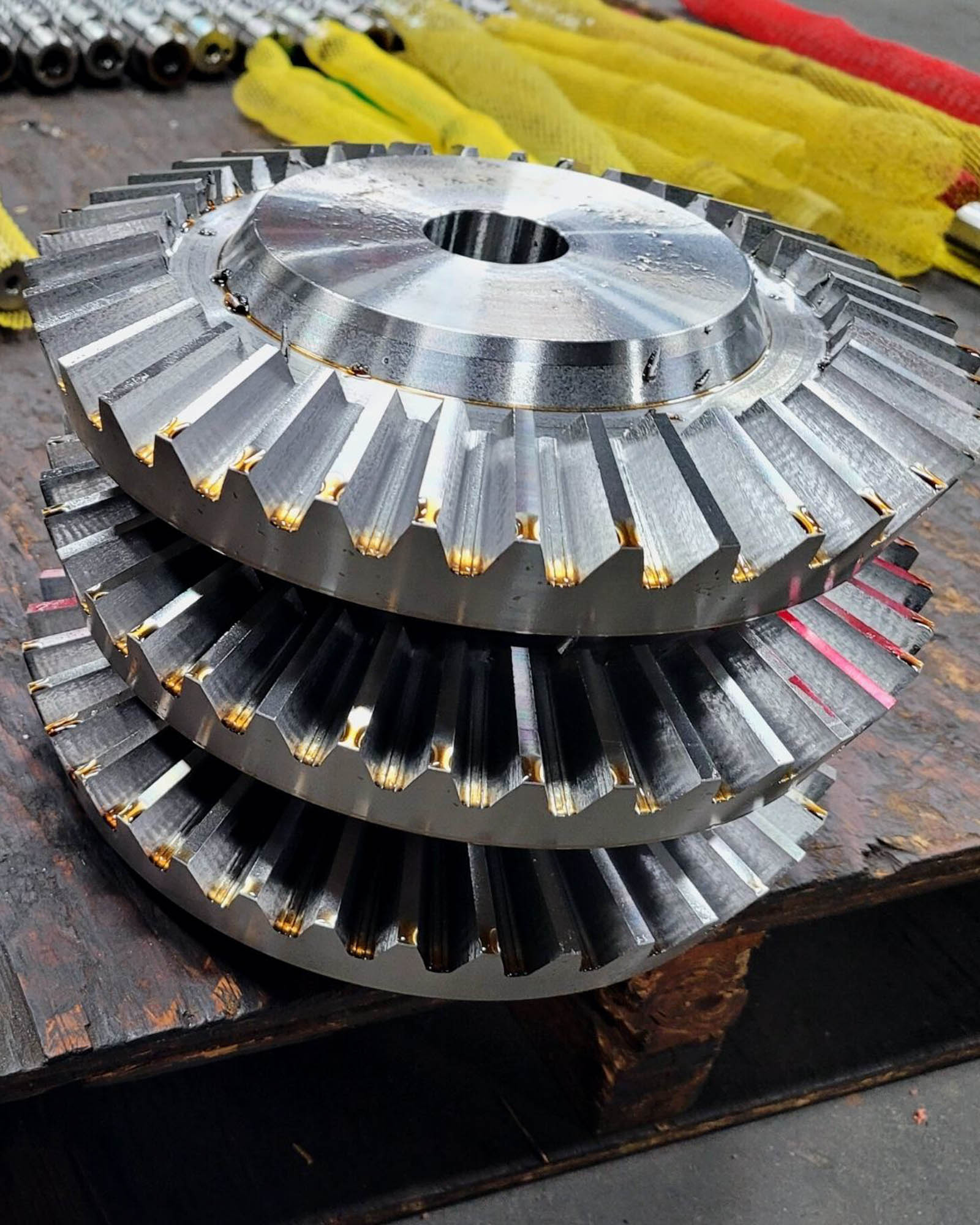

Straight bevel gears turn power through a right angle, with the load riding on the contact between the mating teeth. We cut them up to 18" OD and 3" face width and pair them as matched sets, checking the contact pattern and roll-testing each pair before it leaves.
Every set is cut to print for new applications, or reverse-engineered from a worn sample when the original is obsolete.
Every set is cut to print for new applications, or reverse-engineered from a worn sample when the original is obsolete.
Technology
Capacity up to 18″ OD, 3″ face width, 3 DP to 16 DP. Accurate tooth geometry and smooth running verified with contact pattern and fit checks.

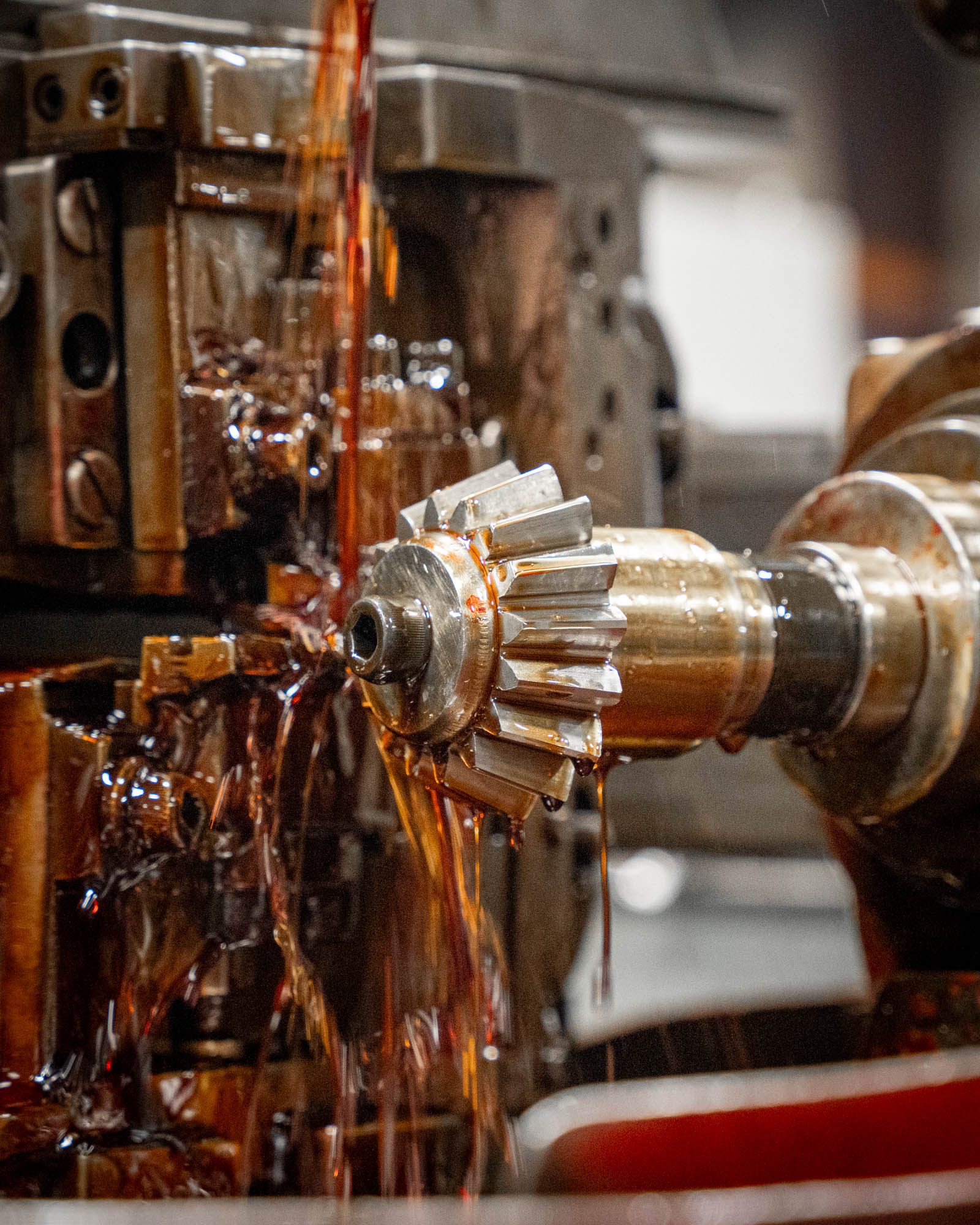

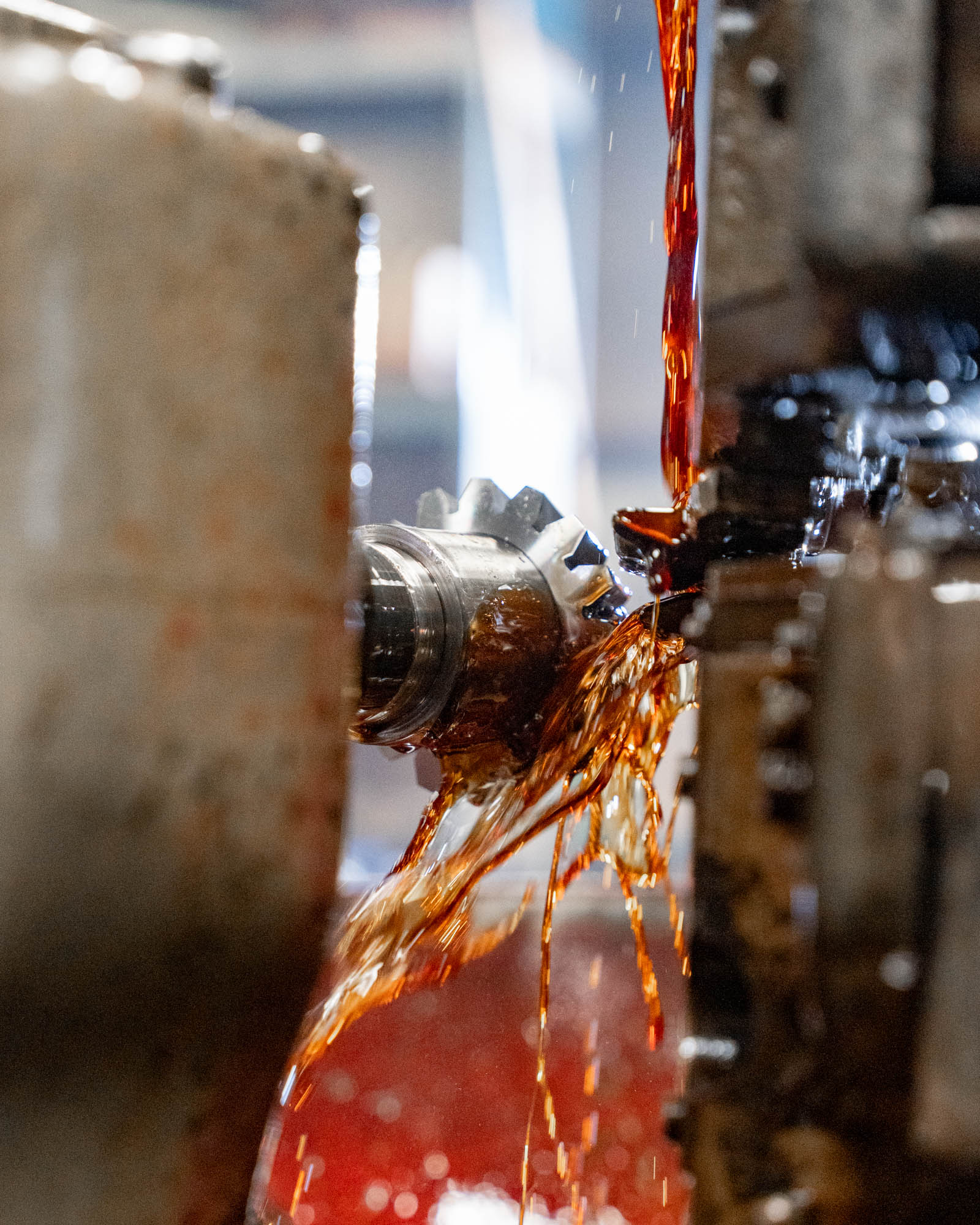

Straight Bevel Generating Equipment
Bevel Inspection and Roll-Check Fixtures
Straight Bevel Generating Equipment
Bevel Inspection and Roll-Check Fixtures
Key Bevel Cutting Operations

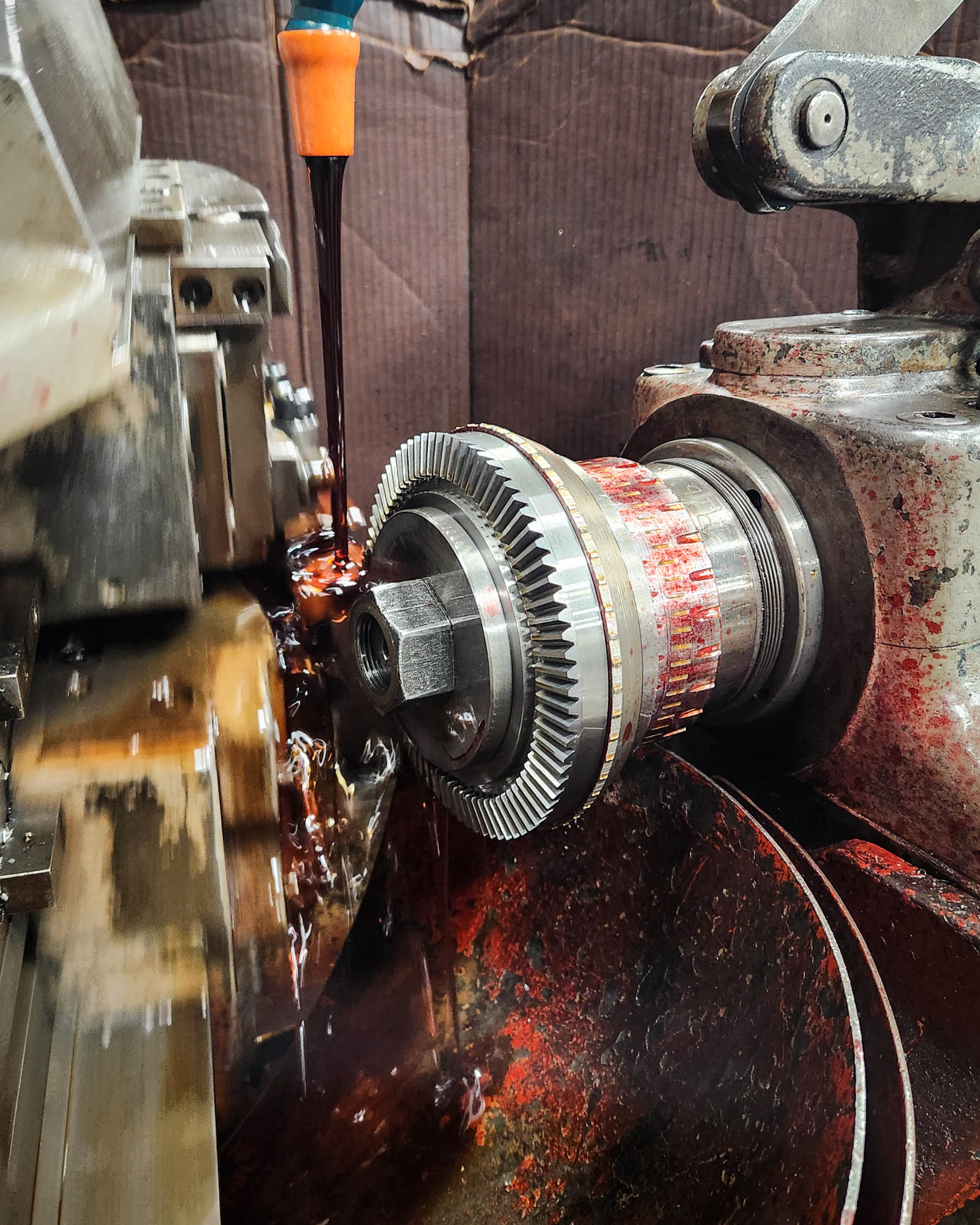

Straight Bevel Gear Cutting and Pairing
Pattern Checking and Roll Testing
Replacement Sets Produced From Print or Sample
Pattern Checking and Roll Testing
Replacement Sets Produced From Print or Sample
Quality has been our priority since the beginning.
With in-house inspection, part quality is never a question. It’s a guarantee.
Discuss your part prints with an engineer.
Schedule a call today to get started on a gear manufacturing quote.
Get a Quote
