Helical Gear Cutting
We cut helical, double-helical, and herringbone gears up to 63" OD, where the opposed helices cancel thrust and run smoother and quieter than spur gears under the same load. Every gear is cut to print for new applications, or reverse-engineered from a worn sample for a rebuild.
Technology
Helix angles up to 30° with tight lead and index control. Large capacity up to 63″ OD and 10″ face on dedicated machines. Matched double-helical sets for accurate center alignment and zero net thrust.

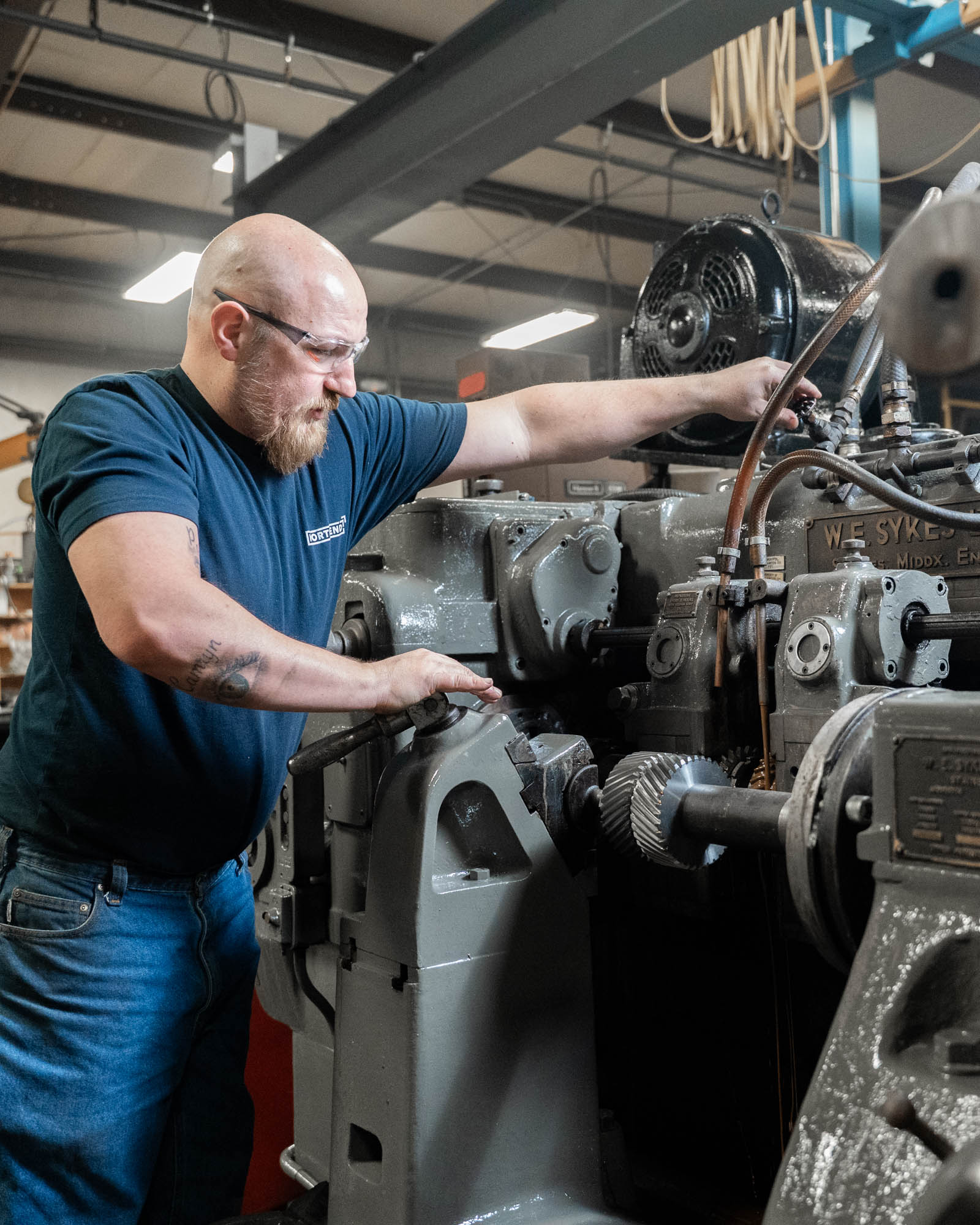

Sykes #3 C
Farrel 5B
Barber-Colman Hobbing Series
G&E Hobbing Series
Sykes #3 C
Farrel 5B
Barber-Colman Hobbing Series
G&E Hobbing Series
Key Helical Shaping Operations
Helical Gear Cutting Up to 63″ OD
Double-Helical and Herringbone Generation
Lead, Index, and Tooth Contact Verification
Matched-Set Cutting for Paired Gears
Double-Helical and Herringbone Generation
Lead, Index, and Tooth Contact Verification
Matched-Set Cutting for Paired Gears
Quality has been our priority since the beginning.
With in-house inspection, part quality is never a question. It’s a guarantee.
Discuss your part prints with an engineer.
Schedule a call today to get started on a gear manufacturing quote.
Get a Quote
