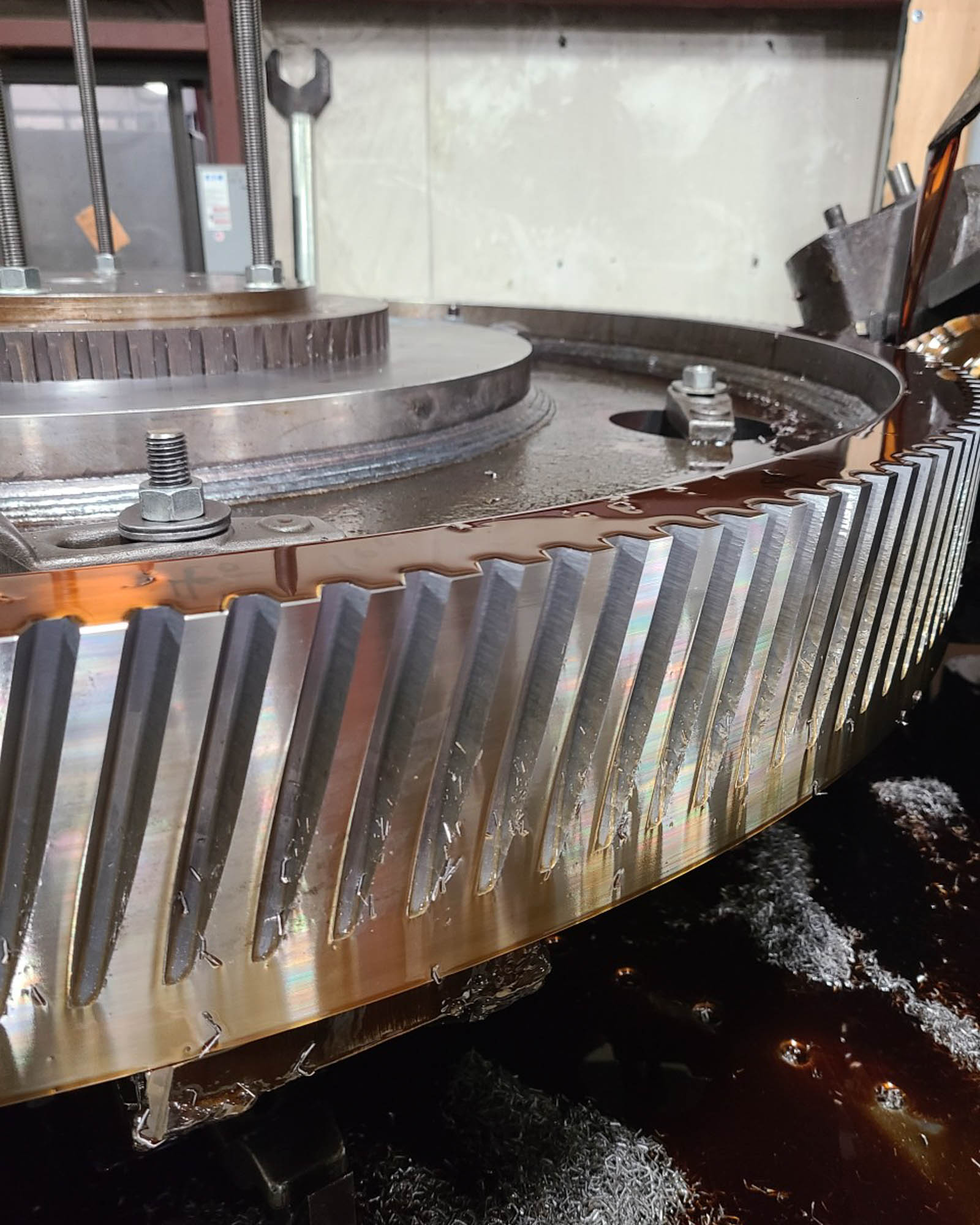

Helical Gear Shaping
We cut helical, double-helical, and herringbone gears engineered for smooth power transmission and long service life.
Technology
Helix angles up to 30° with tight lead and index control. Large capacity up to 63″ OD and 10″ face on dedicated machines. Matched double-helical sets for accurate center alignment and zero net thrust.
Sykes #3 C
Farrel 5B
Barber-Colman Hobbing Series
G&E Hobbing Series
Sykes #3 C
Farrel 5B
Barber-Colman Hobbing Series
G&E Hobbing Series
Key Helical Shaping Operations
Helical Gear Cutting Up to 63″ OD
Double-Helical and Herringbone Generation
Lead, Index, and Tooth Contact Verification
Matched-Set Cutting for Paired Gears
Double-Helical and Herringbone Generation
Lead, Index, and Tooth Contact Verification
Matched-Set Cutting for Paired Gears
Quality has been our priority for over 70 years.
With in-house inspection, part quality is never a question. It’s a guarantee.
Discuss your part prints with an engineer.
Schedule a call today to get started on a gear manufacturing quote.
