Spur Gears
When a spur gear runs past the size range most shops can hold, it gets cut here. We machine internal and external spur gears up to 72" OD through hobbing, shaping, and grinding, for the large drives and heavy equipment that keep American industry turning.
Every gear is built to print for new applicaitons, or reverse-engineered from a worn sample for a rebuild. We machine them in annealed, hardened, and stainless steel, along with other ferrous and nonferrous materials.
Every gear is built to print for new applicaitons, or reverse-engineered from a worn sample for a rebuild. We machine them in annealed, hardened, and stainless steel, along with other ferrous and nonferrous materials.
Specifications
MAX PART DIAMETER
72" OD
MAX FACE WIDTH
30"
Pitch Range
1.5 - 72 DP
Pressure AnGle
14.5 - 45°

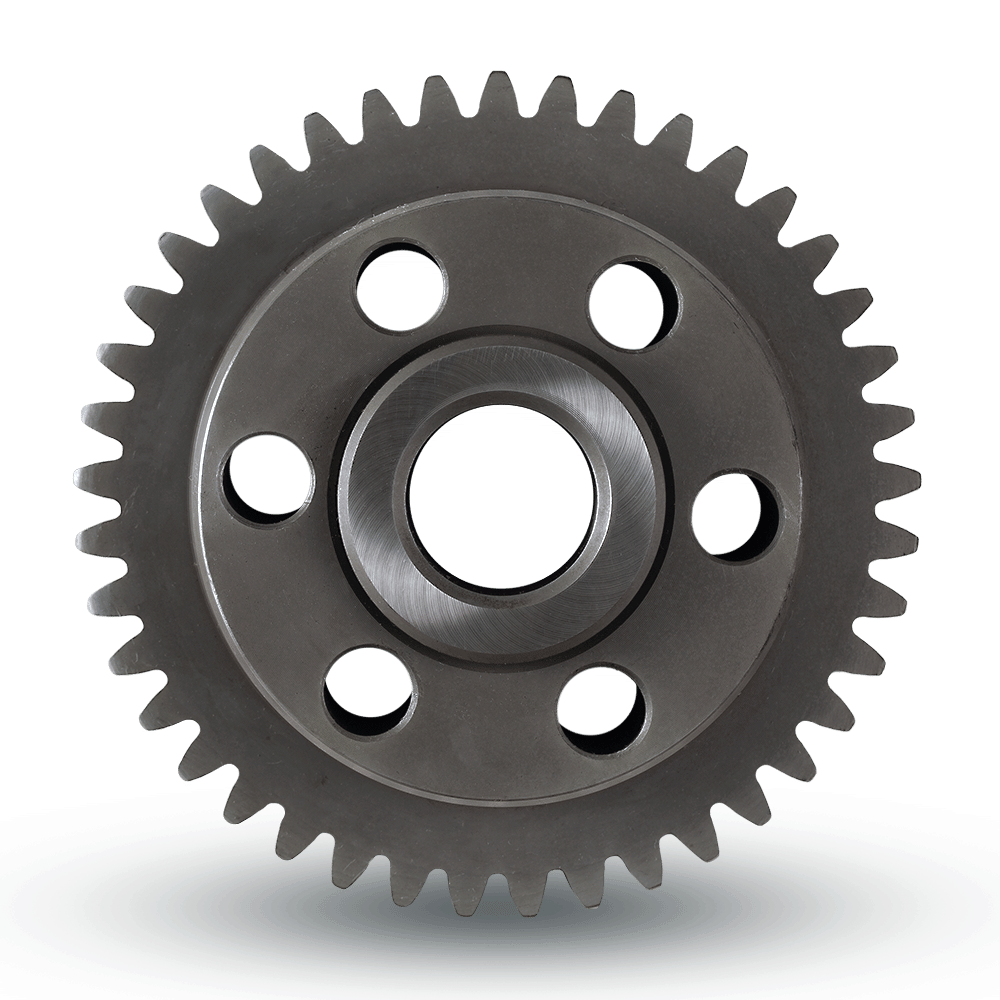

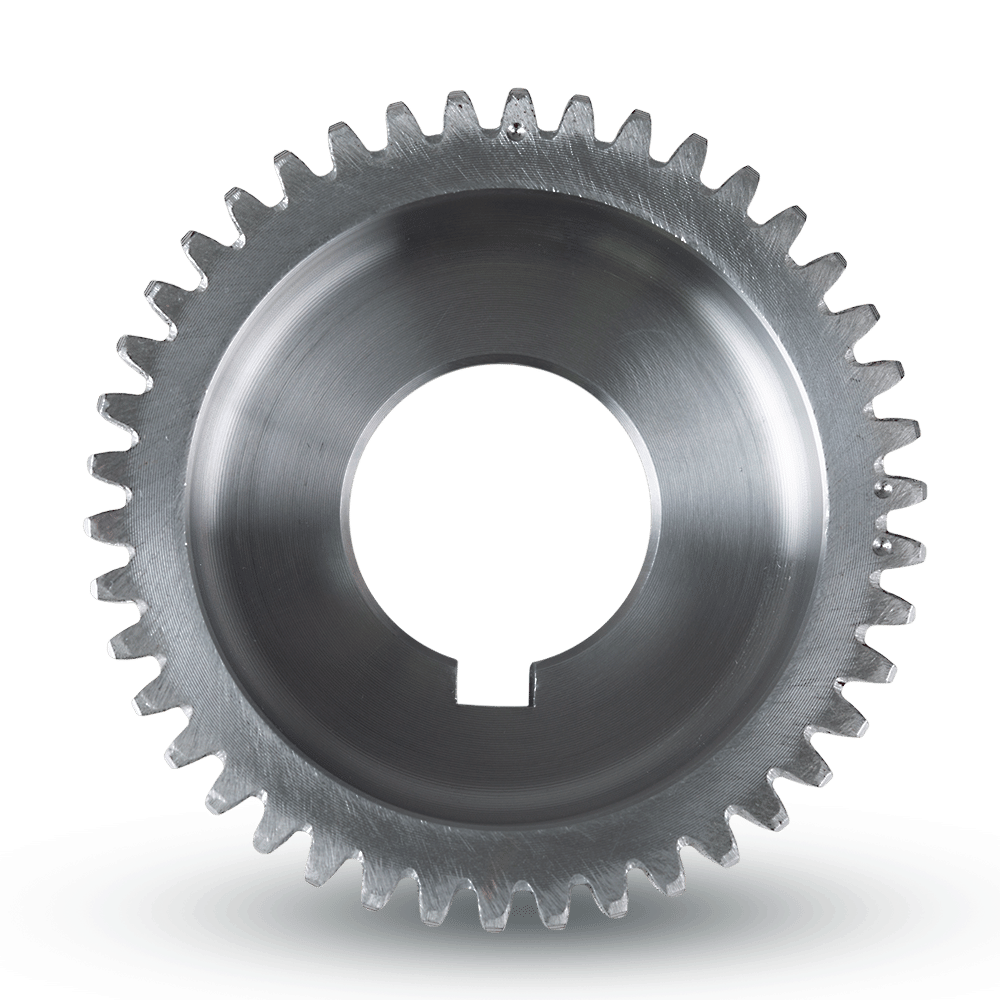

Custom Spur Gear Samples
teeth
24
DIAMETRAL PITCH
3 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
8.000"
teeth
42
DIAMETRAL PITCH
16 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
2.625"
teeth
41
DIAMETRAL PITCH
8 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
5.125"
Gear quality is our top priority.
From prototypes to AGMA 15 gears, each part is verified with in-house inspection.
