Worm Gears
We manufacture worm gears to meet your exact specifications. Worm gears can features teeth as course as 1.5 DP and as fine as 72 DP. We typically produce worm gears using annealed, hardened and stainless steel, and various other ferrous and nonferrous materials.
Specifications
MAX PART DIAMETER
72"
MAX FACE WIDTH
30"
PITCH RANGE
1.5 - 72 DP
PRESSURE ANGLE
14.5 - 45°
Custom Worm Gear Samples

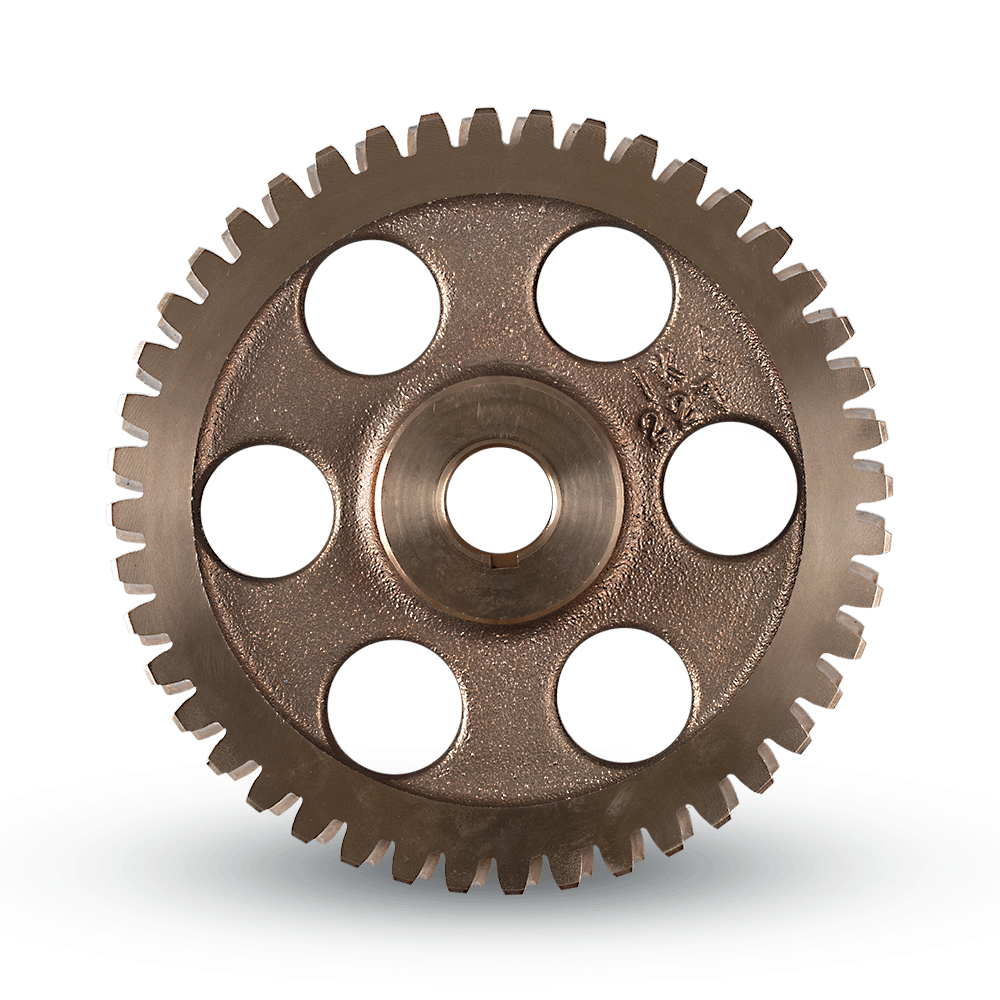

teeth
40
DIAMETRAL PITCH
8 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
5.000"
teeth
44
DIAMETRAL PITCH
6 DP
PRESSURE ANGLE
14.5°
PITCH DIAMETER
7.000"

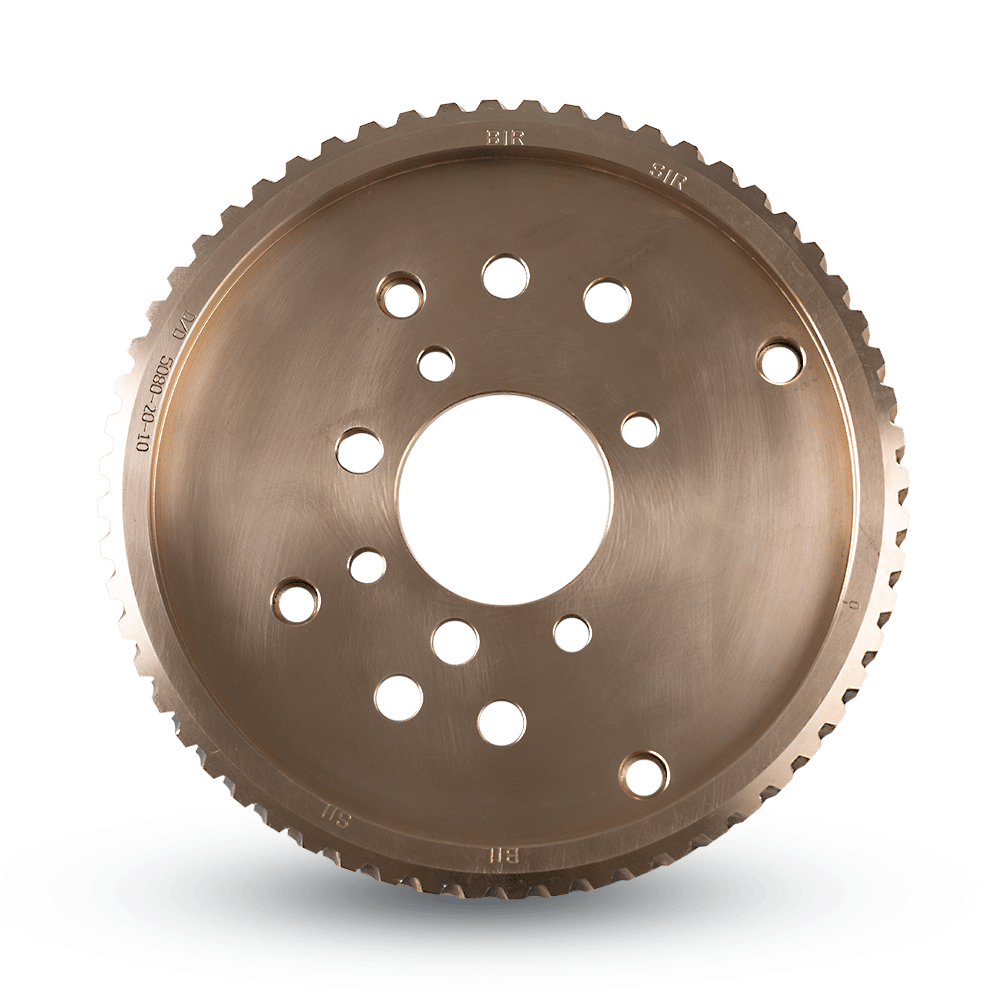

teeth
60
DIAMETRAL PITCH
7 DP
PRESSURE ANGLE
14.5°
PITCH DIAMETER
8.500"
Gear quality is our top priority.
From prototypes to AGMA 15 gears, each part is verified with in-house inspection.
