Bevel Shafts
A bevel shaft carries its gear and shaft as one part, and in a heavy drive it has to take load and stay true under it. We machine straight bevel shafts in fine and coarse pitches, with ratios from 1:1 to 1:10 and a coniflex or conventional bearing pattern.
Every shaft is built to print for new work, or reverse-engineered from a worn sample when the original is obsolete. We machine them in annealed, hardened, and stainless steel, along with other ferrous and nonferrous materials.
Every shaft is built to print for new work, or reverse-engineered from a worn sample when the original is obsolete. We machine them in annealed, hardened, and stainless steel, along with other ferrous and nonferrous materials.
Specifications
MAX diameter
8” OD
MAX LENGTH
54"
Pitch Range
6 DP+
Pressure Angle
14.5 - 45°

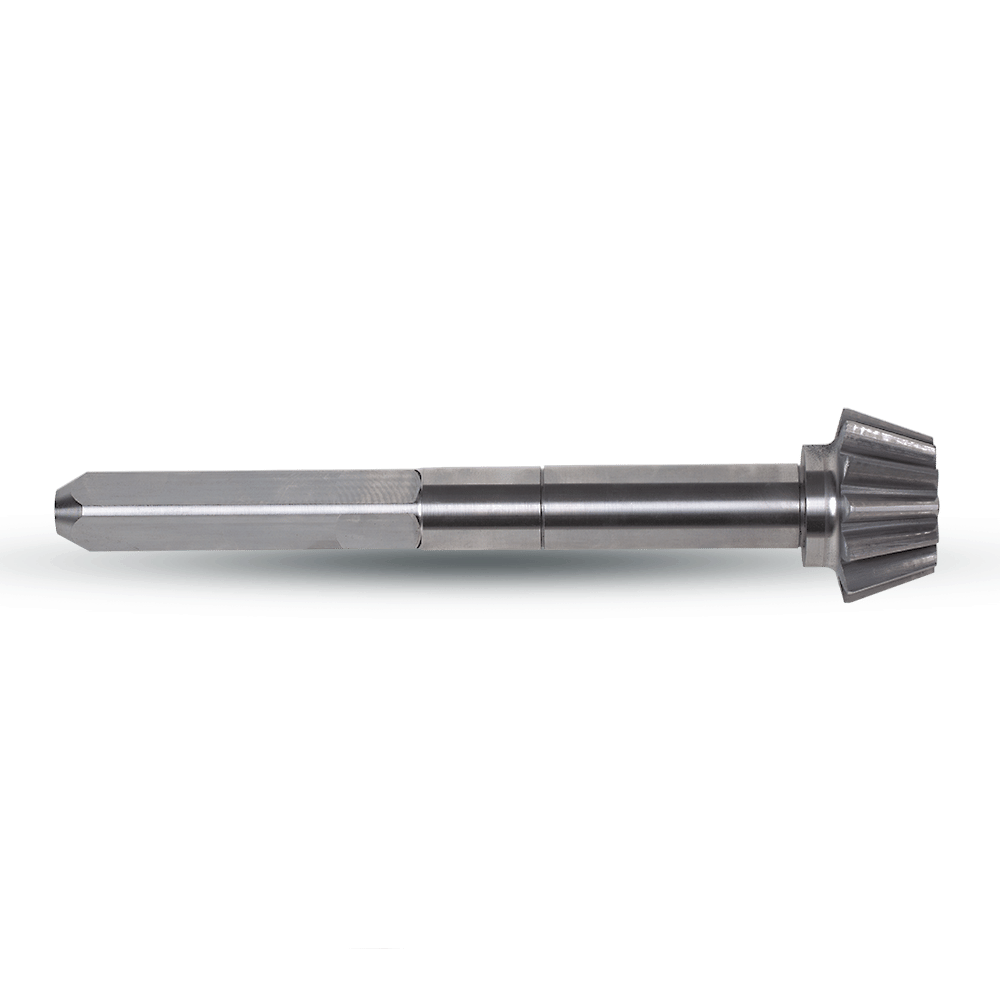

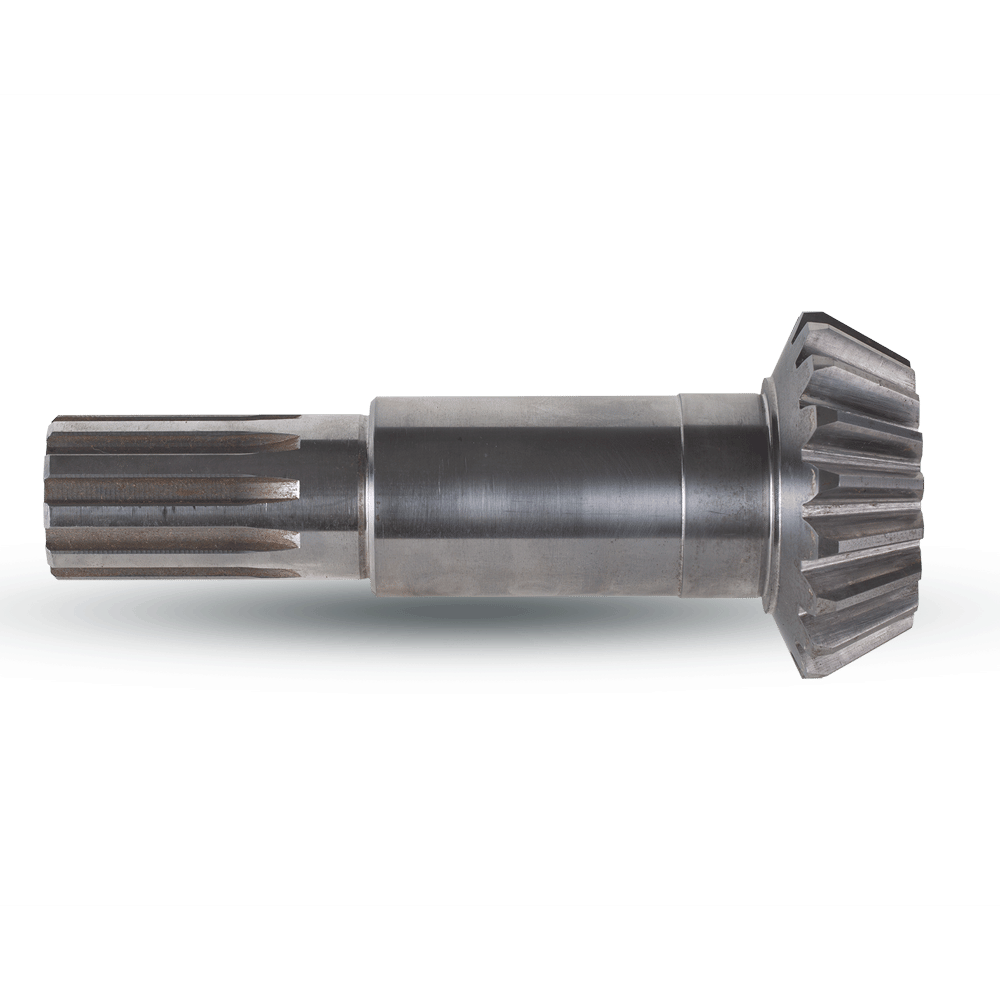

Straight Bevel Shaft Samples
teeth
18
DIAMETRAL PITCH
5 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
3.600"
teeth
12
DIAMETRAL PITCH
4.57 DP
PRESSURE ANGLE
22.5°
PITCH DIAMETER
2.626"
teeth
11
DIAMETRAL PITCH
3.25 DP
PRESSURE ANGLE
20°
PITCH DIAMETER
3.384"
Shaft quality is our top priority.
Shafts undergo in-house inspection, then ship with complete documentation.

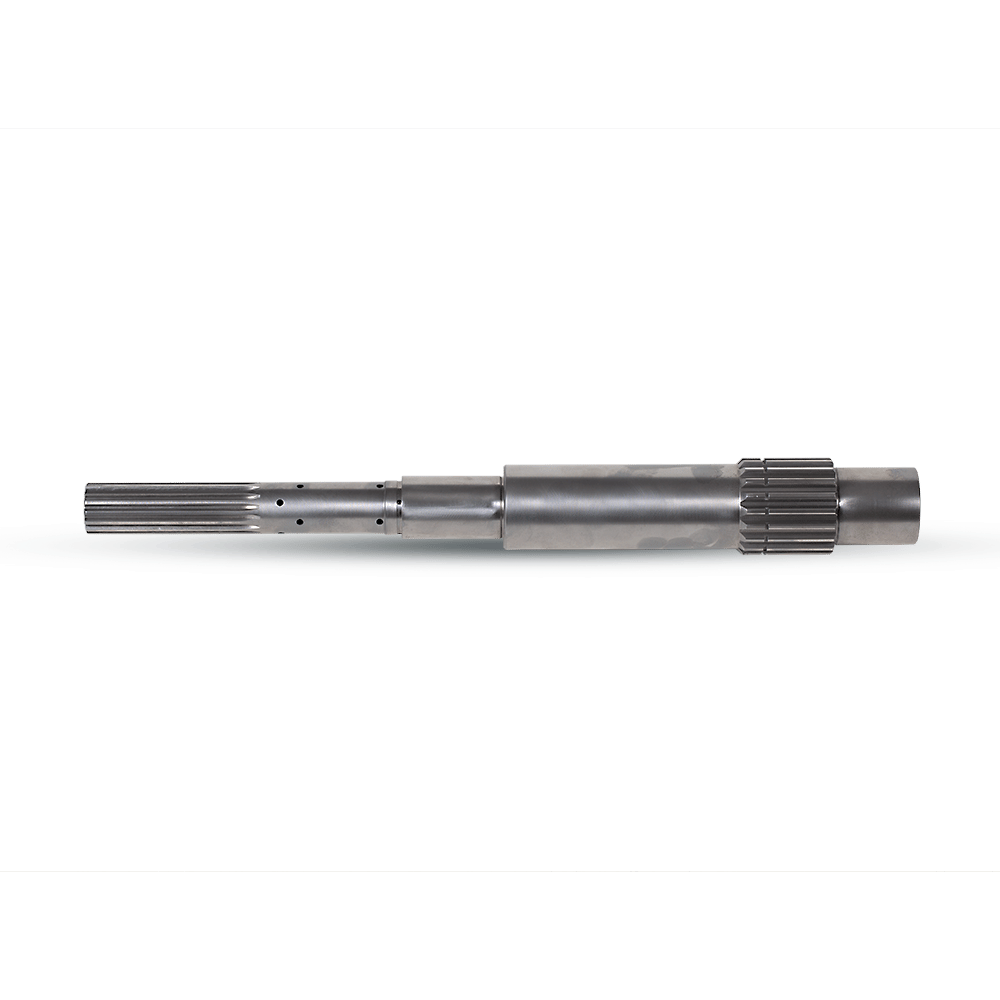

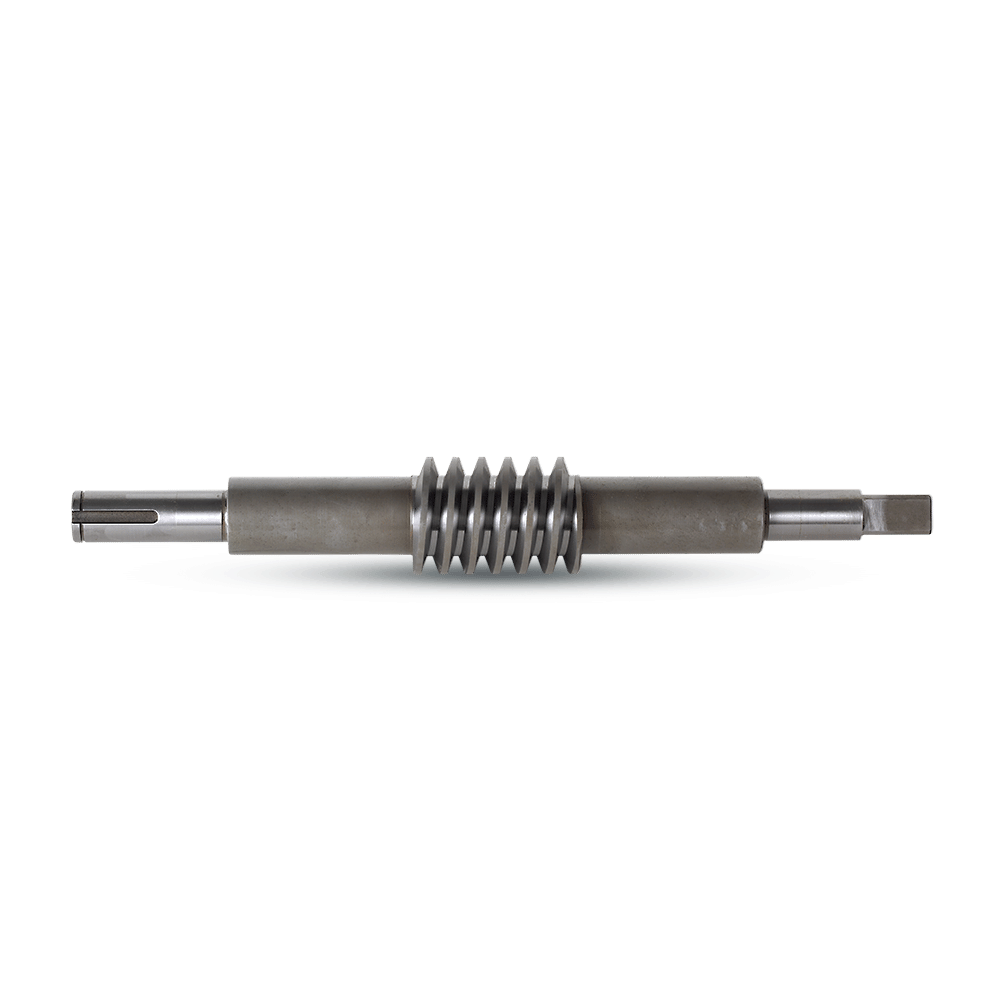

Explore Other Shafts
